Remote code execution via PHP [Unserialize]
At NotSoSecure, we conduct Pen Test/ Code Reviews on a day-to-day basis and we recently came across an interesting piece of PHP code that could lead to RCE, but the exploitation was bit tricky. After spending some sleepless nights trying to break this code, we identified that both application and system level code execution was possible using the vulnerability. This blog post from Rahul Sasi will shed some info on the bug and exploitation part.

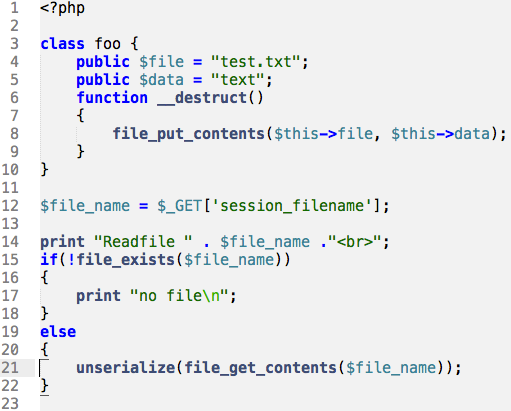

The vulnerable code:
In the above code, user controlled value could be passed on to PHP un-serialization function. The vulnerability occurs when user-supplied input is not properly sanitized before being passed to the
unserialize(). Since PHP allows object serialization, attackers could pass ad-hoc serialized strings to a vulnerable u
nserialize() call, resulting in an arbitrary PHP object(s) injection into the application scope. In our code the application takes a file name, which gets read using PHP
file_get_contents function. The output is then fed to php unserialize module. With the above bug both application level and system level code executions is possible, we will get into that soon.
In order to successfully exploit the above bug three conditions must be satisfied:
- The application must have a class which implements a PHP magic method (such as
__destruct) that can be used to carry out malicious attacks, or to start a “POP chain”.
- All of the classes used during the attack must be declared when the vulnerable
unserialize()is being called, otherwise object autoloading must be supported for such classes .
- The data passed to unserialized comes from a file, so a file with serialized data must be present on the server.
In the above scenario, conditions 1 and 2 are satisfied for exploitation. But since the input to un-searilized comes from a file read by PHP
file_get_contents, it was bit tricky to exploit.
file_get_contents can be passed with remote URLs if
allow_url_fopen is enabled (on latest PHP versions its disabled by default). In one such case an attacker could pass in a url with a file containing serialized malicious data hosted on a remote server.
Contents of exp.txt
allow_url_fopen was not enabled on the applications we were testing. Note: It is not possible to include a file like
/proc/self/environ or anything similar (like access logs) since, a serialized string should not contain garbage data. So our file should only contain the serialized data for the exploit to work.
Before we move on to how to exploit the above code let me explain a bit on PHP object injection exploit and what the above payload does.
PHP Object Injection:
Php Unserialization based security issues were first documented by Stefan Esser in 2009 . These days with the increase in number of json based applications serialization modules are used a lot. Lets learn more about the serialization modules.

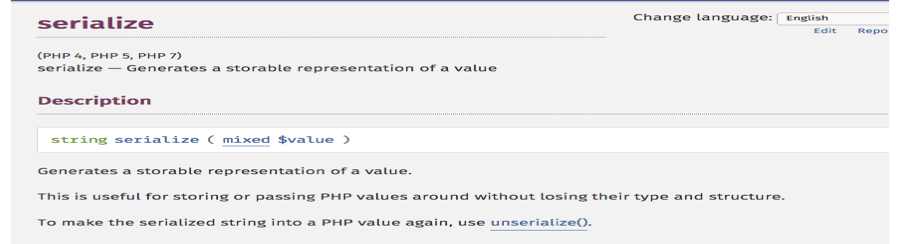

In order to preserve the contents on an array PHP has this function called
serialize() ,it converts an array, given as parameter, into a normal string that you can be saved in a file, passed as an input to a URL etc.

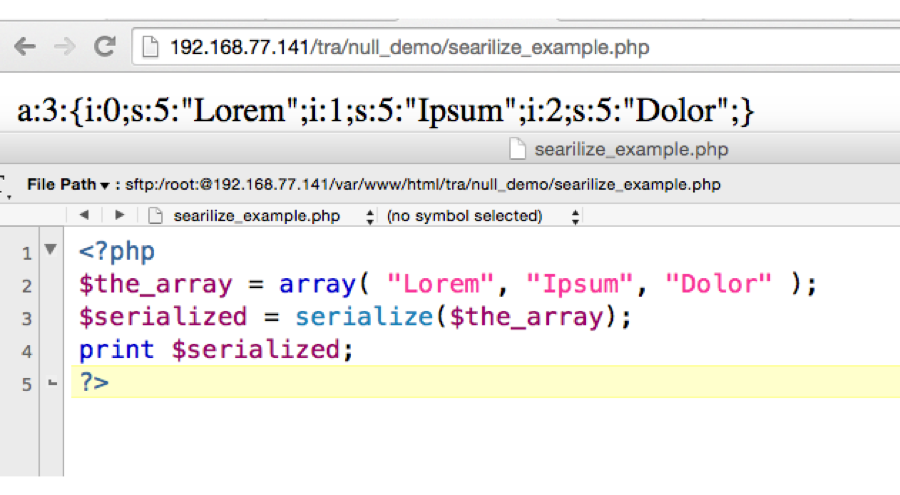

Serializing a 3 char string array.
Understanding the serialized string
Array of 3 values
Integer, value [ index-0]
String, 5 chars long, string value “Lorem”
Integer, value [index-1]
String , 5 chars long, string value “Ipsum”
Integer, value [index-2]
String , 5 chars long, string value “Dolor”

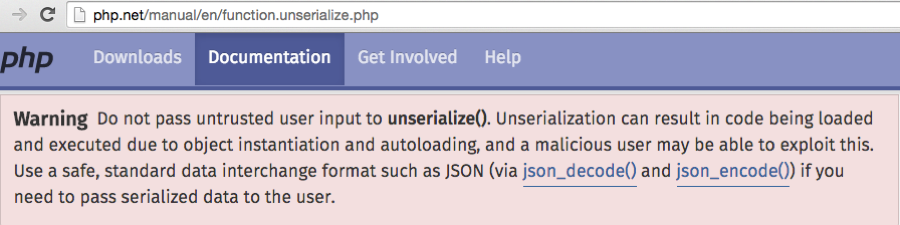

unserialization() is the opposite of
serialize(). It takes a serialized string and converts it back to an array object. Un-serialization can result in code being loaded and executed due to object instantiation and auto loading.
In PHP, we can define some special functions that will be called automatically. Such functions require no function call to execute the code inside. With this special feature, these are commonly referred as magic functions or magic methods. PHP magic method names are limited with some list of PHP supported keywords, like construct, destruct etc.
The most commonly used magic function is
__construct(). This is because as of PHP version 5, the
__construct method is basically the constructor for your class. If PHP 5 can not find the __construct() function for a given class, then it will search for a function with the same name as the class name – this is the old way of writing constructors in PHP, where you would just define a function with the same name as the class.
Here are few magic functions in php:
__construct(), __destruct(), __call(), __callSt atic(), __get(), __set(), __isset(), __unset(), __sleep(), __wakeup(), __toString(), __invoke(), __set_state(), __clone(), and __autoload().
Here are few magic methods in php:
Instantiation is when a class becomes an object by creating an instance of the class in memory. So when you actually call new
class() is now an instantiated object. When you un-serialize a string that is exactly what php does [Object instantiation], converts a string of arrays into objects. Un-serializing objects allows to control all properties a) public b) protected c) private, however un-serialized objects get woken up
__wakeup() and later destroyed via
__destruct(), and hence already existing code placed inside these[wakeup,destruct] magic function gets executed.
So we need to find existing usable code defined inside _destruct or _wakeup, and then hijack the flow of the application.

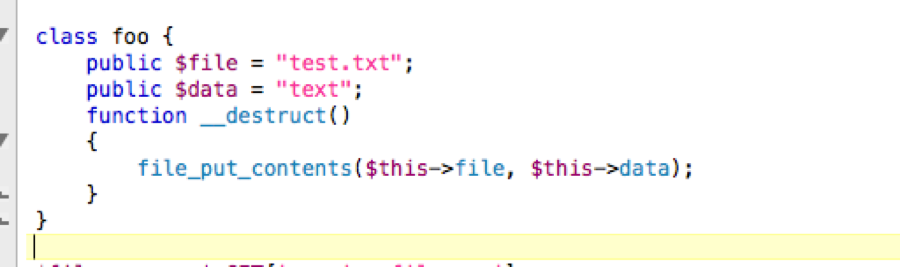

In our vulnerable program we have destruct with a function file_put_contents:
So our payload looks like:
[ Object, takes 3 parameter with name foo]
[Parameter foo takes 2 values]
[String, 4 chars long, value “file”, string 9 chars long, value shell.php]
String, 4 chars long, string 5 chars long, value”aaaa”
So when our above input string is un-serialized it allows controlling the properties of the class “foo”. An already existing code that is inside a magic method “
_destruct” gets executed with our controlled values, in our case
file_put_contents, creating a file “shell.php”.
Since in our case, the input to Unserialization is the file read from file_get_contents.
$file_name = $_GET['session_filename'];
One of the things we were trying out was to find a method to put up the exp.txt on the server. For this we had to find a file/image upload feature. And then uploaded the file with the serialized payload. Then all we had to do was trigger , the following way.
Alternately system level RCE is possible using CVE-2014-8142 and CVE-2015-0231
“Use-after-free vulnerability in the process_nested_data function in ext/standard/var_Unserializationr.re in PHP before 5.4.36, 5.5.x before 5.5.20, and 5.6.x before 5.6.4 allows remote attackers to execute arbitrary code via a crafted Unserialization call that leverages improper handling of duplicate keys within the serialized properties of an object .”

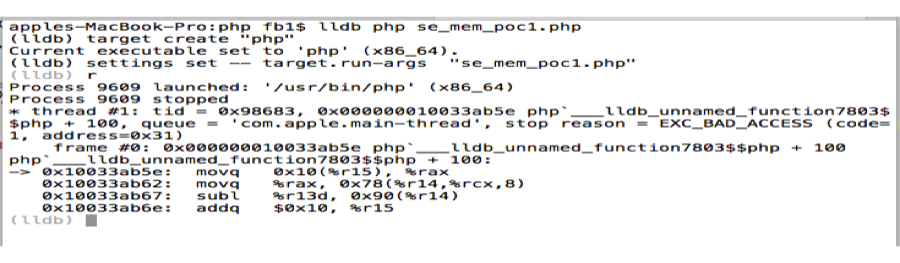

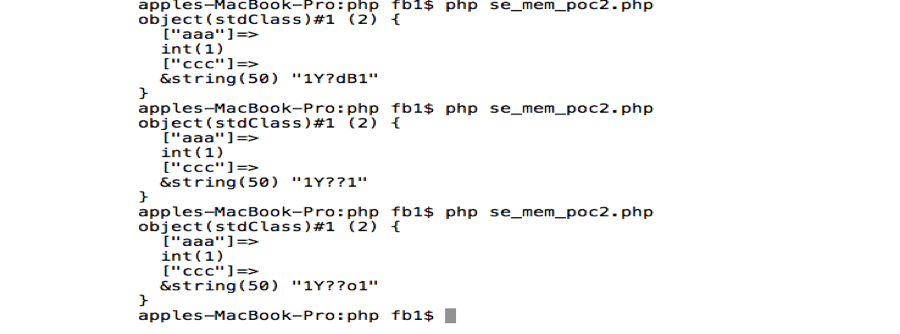

The above bug affects core php unsearilize function. The poc was released by Stefan Esser, we tried to optimize and make a code execution possible with the bug. Since its possible to attain system level RCE if successfully exploited.

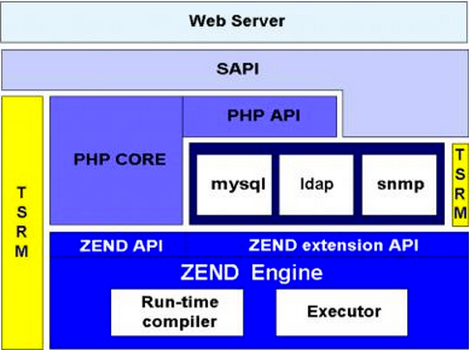

PHP + Apache Security Architecture:
These diagrams are good enough to explain php architecture in detail.
1) So if we could execute code in context of PHP , we would be able to break out of many restrictions.
2) Should be able to get shell access to hardned PHP Hosts.
I am still working on this. And I have found that “Tim Michaud” from innulled is working on the same http://www.inulledmyself.com/2015/02/exploiting-memory-corruption-bugs-in.html . We will update this blog soon.
